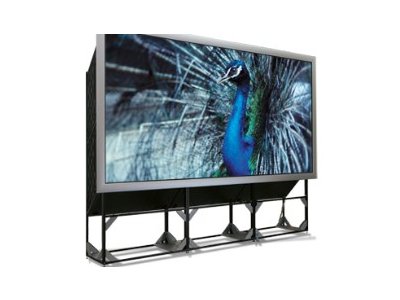

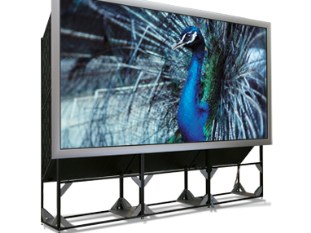

OverView OVL-815 Fully redundant 80" SXGA+ 4:3 LED video wall

Name: OverView OVL-815 Fully redundant 80" SXGA+ 4:3 LED video wall
Brand: Barco
Availability: OutOfStock

OTRZYMAJ RABAT DODATKOWY NAWET 40%_{* W każdej chwili możesz się wypisać}

Cena na telefon

Produkt niedostępny

Resolution	SXGA+ (1400x1050px)
Brightness	on-screen: 270 cd/m² (FXS)
On-screen contrast	1,200,000 :1
Color	Up to 165% EBU
Display technology	rear-projection DLP
White point	3,200K \| 6,500K \| 9,600K \| arbitrary
Brightness uniformity	Typ 95% ANSI 13
Screen	BB, FXS, High Gain
Screen gap	< 0.2 mm \| 0.008" stitched < 2.0 mm \| 0.08" modular (@25°C) < 0.6 mm \| 0.024" modular (@30°C)
Color stability	Self calibrating with spectrometer based Sense6
Dimensions	• Diagonal: 80" nominal • Width: 1,600 mm / 63" • Heigth: 1,200 mm / 47.2" • Depth: 1,023 mm / 40.3" • Aspect ratio: 4:3 • Weight/module 131.3 kg / 289 lbs
Light source	3x six fold redundant LED block
Light source lifetime	> 60,000 h, > 80,000 h (eco)
Conditions for operation	10°C-40°C, 50°F-104°F, 80% humidity (nc)
AC input voltage	90 – 240 V, 50-60Hz
Power	typical: 230W, maximum: 350W, eco mode: 170W
Heat dissipation	typical: 785, maximum: 1,195, eco mode: 580 BTU/h
Direct ethernet access	Build in web server
Graphical user interface	All settings and operational parameters
Signal input/output	2x Dual link DVI in, 2x Dual link DVI out Single link DVI in, with HDCP (optional)
Pixel clock	320 MHz
Input frequency	24 – 62 Hz
Genlock	49 – 61 Hz
Signal processing	Loop through up to 10 cubes / Free cropping, free scaling
Integration to third party equipment	Web based API
Warranty	2 years
