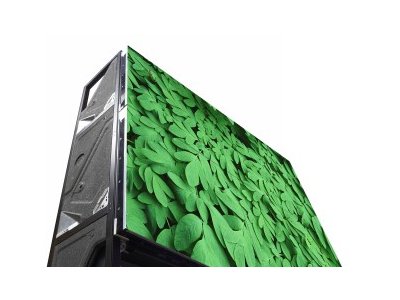

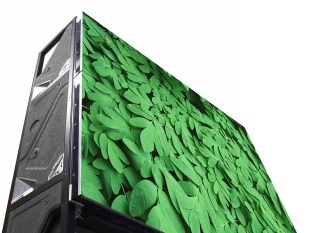

OverView OLF-710 Fully redundant 70" WXGA 16:9 LED video wall with front access

Name: OverView OLF-710 Fully redundant 70" WXGA 16:9 LED video wall with front access
Brand: Barco
Availability: OutOfStock

OTRZYMAJ RABAT DODATKOWY NAWET 40%_{* W każdej chwili możesz się wypisać}

Cena na telefon

Produkt niedostępny

Resolution	HD ready (1368x768 pixels)
Brightness	On-screen: 235 Cd/m²
On-screen contrast	560,000:1
Color	Up to 165% EBU (at maximum color mode)
Display technology	Rear projection DLP
White point	2,300K \| 6,500K \| 9,300K \| arbitrary
Brightness uniformity	95% ANSI 9
Screen	FXS, with H/V 35°/33° ( +/- 2°) half gain angle
Screen gap	Hor: 2.3 mm \| 0.09”, Vert. 1.6 mm \| 0.07” (@ 25°C)
Color stability	Self calibration with spectrometer based Sense⁶
Dimensions	• Diagonal: 70" (Approx.) • Width: 1,550 mm \| 61" • Height: 872 mm \| 34.3" • Depth: 622 mm \| 24.5" • Weight: Projection Module: < 73 kg \| 161 lbs
Light source	6x redundancy for each of 3 LED’s
Light source lifetime	> 60,000h (at 6500k) > 80,000h in eco mode MTBF LED > 500,000 h
Conditions for operation	10°C-40°C, 50°F-104°F, 80% humidity (non-condensing)
AC input voltage	90 – 240 V, 50-60Hz
Power	170W (eco) 230W (typ.) 350W (max)
Heat dissipation	580 BTU/h (eco) 785 BTU/h (typ.) 1,194 BTU/h (max)
Signal	2x Dual link DVI-D in / 2x Dual link DVI-D out Single link DVI-D in, with HDCP (optional)
Direct ethernet access	Built in web server
Graphical user interface	All settings and operational parameters
Signal input/output	2x Dual link DVI in / 2x Dual link DVI out Single link DVI in, with HDCP (optional)
Pixel clock	330 MHz
Input frequency	24 – 62 Hz
Genlock	49 – 61 Hz
Signal processing	Loop through Free cropping, free scaling (optional)
Integration to third party equipment	WEB service API (optional)
Warranty	2 years
