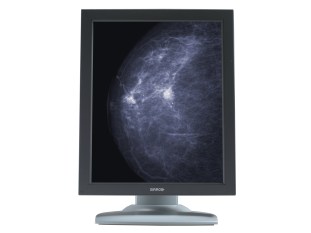

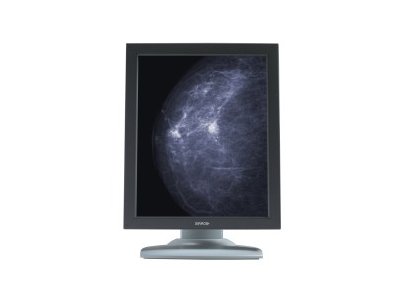

Nio 5MP MDNG-51215 MegaPixel (2048 x 2560) diagnostic grayscale display system

Name: Nio 5MP MDNG-51215 MegaPixel (2048 x 2560) diagnostic grayscale display system
Brand: Barco
Availability: OutOfStock

OTRZYMAJ RABAT DODATKOWY NAWET 40%_{* W każdej chwili możesz się wypisać}

Cena na telefon

Produkt niedostępny

Screen technology	TFT AM LCD Dual Domain IPS
Active screen size (diagonal)	541 mm (21.3")
Active screen size (H x V)	422 x 338 mm (16.5 x 13.3")
Aspect ratio (H:V)	5:4
Resolution	5MP (2560 x 2048)
Pixel pitch	0.1650 mm
Active screen height	337.9 mm (13.3")
Color imaging	No
Gray imaging	Yes
Number of grayscales (LUT in/LUT out)	10 bit
Viewing angle (H, V)	170°
Uniform Luminance Technology (ULT)	No
Per Pixel Uniformity (PPU)	No
Ambient Light Compensation (ALC)	No
Backlight Output Stabilization (BLOS)	Yes
I-Guard	No
Maximum luminance	700 cd/m²
DICOM calibrated luminance (ULT off)	500 cd/m²
Contrast ratio (ULT off)	800:1
Response time (Tr + Tf)	25 ms
Video input signals	DVI-D Dual Link
USB ports	1 upstream (endpoint), 2 downstream
USB standard	1.1
Power consumption (nominal)	95W
Power save mode	Yes
Dimensions with stand (W x H x D)	Portrait: 382 x 577~637 x 249 mm Landscape: 488 x 472~532 x 249 mm
Dimensions w/o stand (W x H x D)	Portrait: 382x 488 x 114 mm Landscape: 488 x 382 x x 114 mm
Net weight with stand	13.5 kg
Mounting standard	VESA (100 mm)
Screen protection	Protective, non-reflective PMMA cover
Recommended modalities	CT, MR, US, DR, CR, NM, Film
Certifications	CE, UL60601, CSA C22.2 No 601.1, IEC60601, EN 60601-1-2, FDA 510k, FCC level B
Supplied accessories	Getting Started Guide Quick-Installation Sheet Video cable (DVI Dual Link) Main cables (UK, European (CEBEC/KEMA), USA (UL/CSA; adaptor plug NEMA 5-15P), Chinese (CCC)) USB 2.0 cable External power supply
Optional accessories	NA
QA software	MediCal QAWeb
Warranty	5 years
