Strona głównaPROJEKTORY MULTIMEDIALNEBARCOMDSC-1119 19-inch surgical color LCD display
Barco

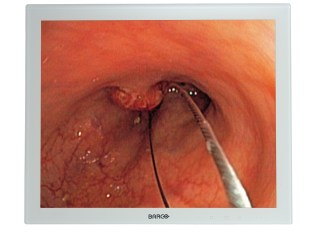

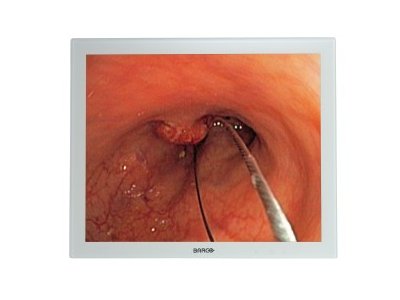

MDSC-1119 19-inch surgical color LCD display

OTRZYMAJ RABAT DODATKOWY NAWET 40%* W każdej chwili możesz się wypisać
Zapisując się do Newslettera, otrzymasz RABAT do 40%* Możesz wypisać się w każdej chwili
Pola wymagane
Cena na telefon

Zapytanie o produkt MDSC-1119 19-inch surgical color LCD display

TokenZmień
Pola wymagane
Produkt niedostępny

Negocjuj cenę

TokenZmień
Pola wymagane
downloadPobierz kartę produktu
Screen technology TFT AM LCD
Active screen size (diagonal) 483 mm (19.0")
Active screen size (H x V) 376 x 301 mm (14.8 x 11.9")
Aspect ratio (H:V) 5:4
Resolution 1MP (1280 x 1024)
Pixel pitch 0.2940 mm
Color imaging Yes
Color support 16.7 million
Viewing angle (H, V) 178°
Maximum luminance 280 cd/m²
Contrast ratio 600:1
Response time (Tr + Tf) 14ms
Scanning frequency (H; V) 15-100 kHz, 50-120 Hz
Housing color White
Video input signals DVI-I Single Link
VGA (D15)
RGBS (4BNC)
S-video
Composite video
Component video
SDI/HD-SDI input/output (optional)
DVI fiber optic input (optional)
Interfaces/Ports 4BNC
Composite Video
4-pin Mini DIN
D15
DVI-I
9pin D-sub
No audio
RS232
Power requirements (nominal) 100-250V
Power consumption (nominal) 80W
Power save mode Yes
Power management DVI-DMPM states supported
Power On state
Active-Off state
DPMS states supported
Dot clock 165 MHz
OSD languages English, French, German, Spanish
Dimensions w/o stand (W x H x D) 430 x 356 x 80 mm
Dimensions packaged (W x H x D) 535 x 590 x 185 mm
Net weight w/o stand 8.6 kg
Net weight packaged w/o stand 13.0 kg
Mounting standard VESA (75 and 100 mm)
Screen protection Protective, non-reflective PMMA cover
Recommended modalities CT, MR, US, DR, CR, NM, Film
Certifications UL 60601-1, CAN/CSA-C22.2 No 601.1-M90: 2005, IEC 60950-1, EN 60601-1, IEC 60601-1, CCC, CE, EN 60601-1-2, FCC-B, VCCI, RoHs compliant, IPX1
Supplied accessories Getting Started Guide
Video cables (DVI Dual Link, VGA, SVHS, BNC)
Main cables (European (CEBEC/KEMA), USA (UL/CSA))
External power supply
Optional accessories Barco MDSC Surgical Medical LCD Display Desk Stand
Barco MDSC Surgical Medical LCD Display Vesa Extender
Barco MDSC Surgical Medical LCD Display Extension Cable 10m
Barco MDSC Surgical Medical LCD Display Extension Cable 2.5m
Warranty 3 years
