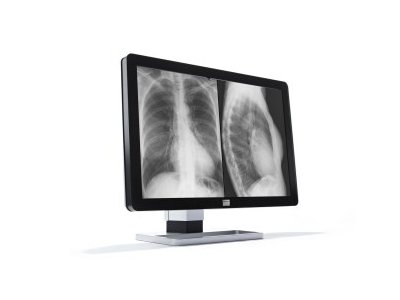

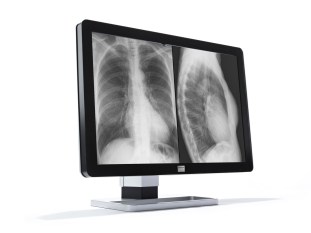

Coronis Fusion 10MP 10 MegaPixel wide-screen diagnostic grayscale display system

OTRZYMAJ RABAT DODATKOWY NAWET 40%* W każdej chwili możesz się wypisać
Zapisując się do Newslettera, otrzymasz RABAT do 40%* Możesz wypisać się w każdej chwili
Pola wymagane
Cena na telefon

Zapytanie o produkt Coronis Fusion 10MP 10 MegaPixel wide-screen diagnostic grayscale display system

TokenZmień
Pola wymagane
Produkt niedostępny

Negocjuj cenę

TokenZmień
Pola wymagane
downloadPobierz kartę produktu
Screen technology TFT AM LCD Dual Domain IPS
Active screen size (diagonal) 761 mm (29.6")
Active screen size (H x V) 645 x 403 mm (25.4 x 15.9")
Aspect ratio (H:V) 16:10
Resolution native 10MP (4096 x 2560)
configurable to 2 x 5MP (2048 x 2560)
Pixel pitch 0.1575 mm
Color imaging No
Gray imaging Yes
Number of grayscales (LUT in/LUT out) 1024 grey levels (10/12)
Viewing angle (H, V) 170°
Uniform Luminance Technology (ULT) Yes
Per Pixel Uniformity (PPU) No
Ambient Light Compensation (ALC) Yes
Backlight Output Stabilization (BLOS) Yes
I-Guard Yes
Maximum luminance 1250 cd/m² (panel typical)
DICOM calibrated luminance (ULT off) 500 cd/m² (panel typical)
Contrast ratio (ULT off) 950:1 (panel typical)
Response time (Tr + Tf) 35 ms
Video input signals DVI-D Dual Link (2x) / DisplayPort (2x)
USB ports 1 upstream (endpoint), 3 downstream
USB standard 2.0
Power consumption (nominal) 102W
Power save mode Yes
Dimensions with stand (W x H x D) Portrait: NA
Landscape: 731 x 580~670 x 270 mm
Dimensions w/o stand (W x H x D) Portrait: NA
Landscape: 731 x 485 x 125 mm
Net weight with stand 24.2 kg
Mounting standard VESA (100 mm)
Screen protection Protective, non-reflective glass cover
Recommended modalities CT, MR, US, DR, CR, NM, Film
Certifications CE0120 (MDD 93/42/EEC class IIb product), CE - 2004/108/EC, CE - 93/42/EEC; A1:2007/47/EC class II b, UL 60601-1 1ST EDITION, CAN/CSA-C22.2 NO. 601.1-M90:2005, IEC 60601-1 2ND ED:1988 + A1:1991 + A2:1995, IEC 60950-1:2005 2ND EDITION, DEMKO - EN 60601-1:1990 + A1:1993 + A2:1995, VCCI, FCC class B, BSMI, FDA 510K, RoHS, KC
Supplied accessories User Guide
Quick-Installation Sheet
Video cables (2 x DVI Dual Link, 2 x DisplayPort)
Main cables (UK, European (CEBEC/KEMA), USA (UL/ CSA; adaptor plug NEMA 5-15P), Chinese (CCC))
USB 2.0 cable
External power supply
Optional accessories NA
QA software MediCal QAWeb
Warranty 5 years
