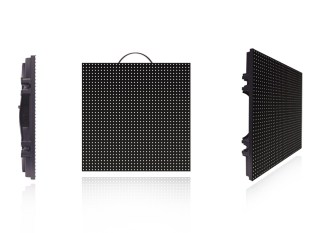

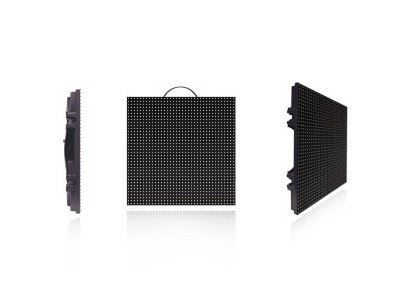

C7 7mm pixel pitch, 2,000 nits, surface-mounted LED tile

Name: C7 7mm pixel pitch, 2,000 nits, surface-mounted LED tile
Brand: Barco
Availability: OutOfStock

OTRZYMAJ RABAT DODATKOWY NAWET 40%_{* W każdej chwili możesz się wypisać}

Cena na telefon

Produkt niedostępny

Pixel pitch	7.69 mm
Brightness	2,000 nits
LED configuration	SMD RGB Black
Pixel density	2,704 LEDs/tile (52x52)
Hor. viewing angle	+/-60° (min 50% brightness)
Vert. viewing angle	+/-60° (min 50% brightness)
Contrast ratio	3500:1 @ 200 lux
Lifetime	100,000 hours (@50% brightness)
Power consumption	660W/m² (max) 220W/m² (typical video)
Weight / Tile	6.4 kg
Weight/m²	40kg
Dimensions (HxWxD)	400 x 400 x 63 mm
Processing	DX-series (NNI-based)
Colors	281 trillion
Refresh rate	3,200 Hz
Temperature range	0°C / +40°C (operational) -20°C / +60°C (storage)
Humidity	35% / 85% (operational) 10% / 90% (storage)
Truss build-up	Max. 12 tiles high
Foot build-up	Max. 25 tiles high
Source compatibility	CVBS, YC, YUV, RGB, DVI (Single & Dual link, up to 2048x1536), SDI, HDSDI, Dual link HDSDI
Power connection	Max. 20 tiles / 16A circuit
Data connection	Up to 150 tiles per NNI output
Tile/tile Z-alignment	+/- 0.5 mm
Curve capability	0° (standard) Radius +4m / +8m / -10m / -22m (optional)
Alternative curves	Custom dowels required
Certifications	ETL, CE, FCC, CCC (pending), TUV (pending), RoHS
