Specs
Package contents
Camera
Remote control
5m Micro USB 2.0 Type-B to Type-A cable
Power supply
Quick-start guide
Tabletop/wall/ceiling mount
6.35mm tripod mounting screw
Velcro
3m HDMI cable
RS232 adapter

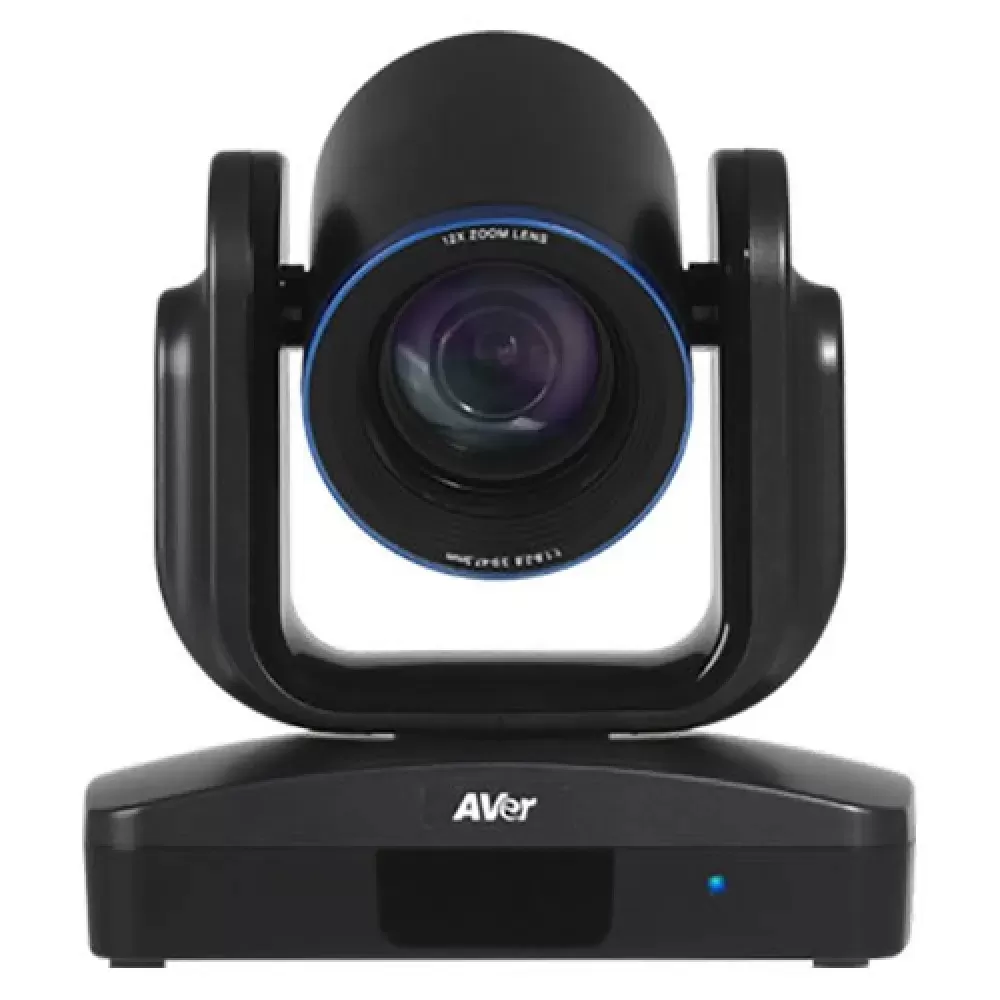

Camera
Full HD 1080p 60fps
Pan: ±130°; 0.45° step
Tilt: +90°/-25°; 0.25° step
Field of view (H): 72.5° (wide) ~ 6.3° (tele)
Sensor: 1/2.8 low lux CMOS 2M pixel
Resolution: full HD 1080p (1920x1080), HD 720p (1280x720), PAL (1024x576), VGA (640x480), QVGA (320x240), QQVGA (160x120) at 60fps, 30fps and 15fps
Scan: progressive
Zoom: 18X total zoom (12X optical zoom)
Lens focal length: 3.9mm (wide) ~ 47.3mm (tele)
Lens F#: 1.8 (wide) ~ 2.8 (tele)
Auto Iris
S/N ratio: >50dB
Minimum illumination: 1 lx (50 IRE, F1.6, shutter 1/30)
2D and 3D denoise
Backlight compensation
Flip, mirror
Minimum working distance: 1.5 meter
Include table/wall/ceiling mount
Kensington slot

Remote control
IR (Infrared)
10 camera presets (100 presets via VISCA)
System requirements*
Windows® 7/ 8/8.1/10
Mac OS® X 10.7 or higher
Google Chromebook version 29.0.1547.70, Platform 4319.79.0

Hardware requirements*
2.4 GHz Intel® Core 2 Duo processor
2 GB RAM or more
USB 2.0 port

Power supply
AC 100V ~ 240V
Consumption: EIAJ 12, 4A
Environmental data
Physical characteristics: 0~40°C
Operation humidity: 20%~80%
Storage temperature: -20~60°C
Storage humidity: 20%~80%

Physical characteristics
Package dimensions: 370 x 252 x 275mm
Package weight: 4.16kg/9.17lbs
Camera: 180 x 140 x 182mm/1.5kg
Remote control: 200 x 50 x 20mm/0.091kg

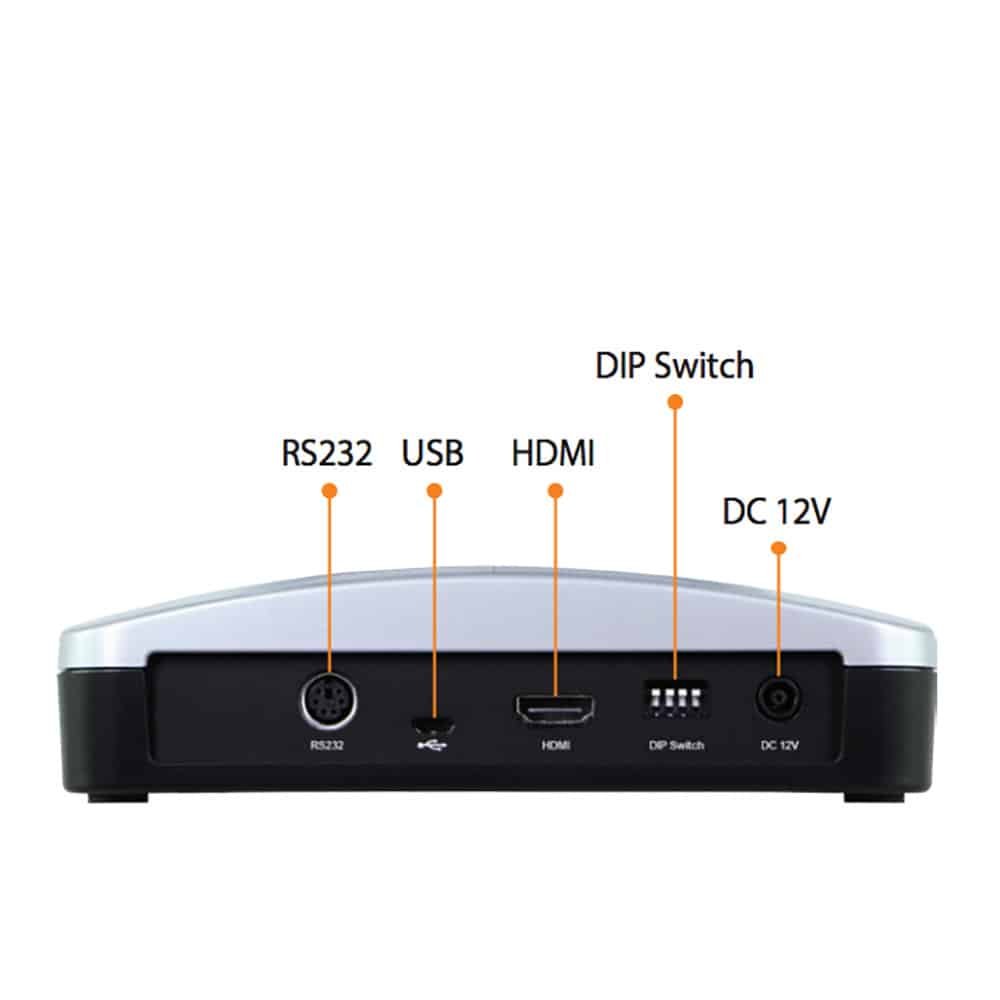

Compliance and tools
YUV, MJPEG, H.264 SVC, AVC (high and base profile)
Multi-stream capable
USB 2.0
UVC (USB Video Class) 1.1 with H.264 extension
VISCA via RS232*
HDMI 1.3
DIP Switch
Downloadable diagnostic tool, field firmware upgrade tool, App for advanced features and settings
*Please check AVer product web page for compatible VISCA commands and devices.
PTZApp
Free download on Windows® and Mac® computers
Compatible with SkypeTM Plugin for answering and hanging up via remote control
Upgrade firmware automatically or manually
Control camera
Set parameters and adjust camera image
Diagnose operating status
View live video

Warranty**
3-year: camera
1-year: accessories

Compatible applications
Skype™, Skype for Business, V-CUBE, Google Hangouts™, FaceTime, Cisco® Webex®, GoToMeeting, Adobe Connect, BlueJeans, Zoom, Vidyo, Fuze, WebRTC, CyberLink U Meeting®
* For Full HD support, please check with your software application provider for system/hardware requirements.
** Please register online to receive free 2 year warranty extension. For detailed warranty information, please contact an AVer local representative.
*** Specifications may vary depending on countries and are subject to change without notice.
